Model |

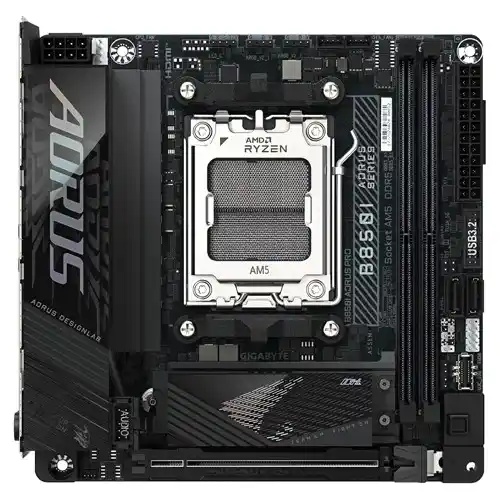

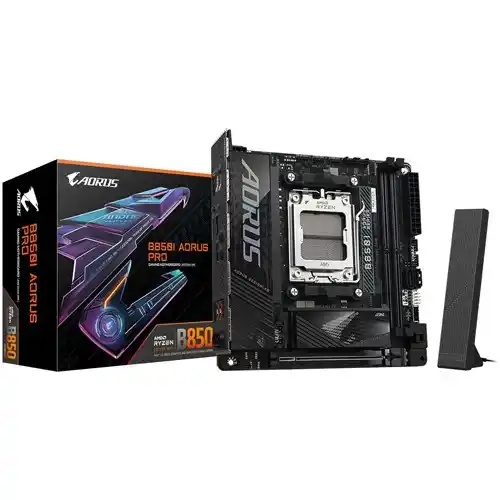

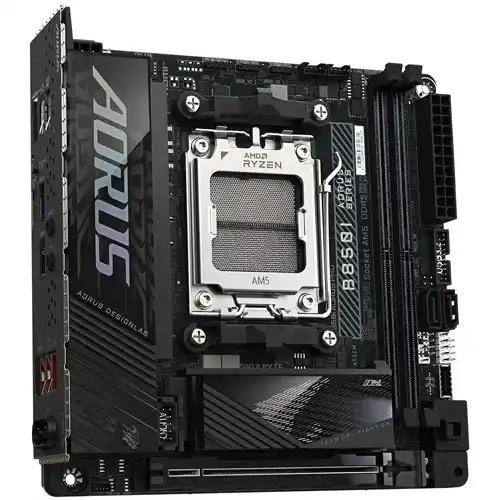

Gigabyte B850I AORUS PRO Wi-Fi7 AM5 DDR5 Mini-ITX Matična ploča |
Procesorsko podnožje (Socket) |
AMD Socket AM5 |
Skup čipova (Chipset) |
AMD B850 |
Podrška za procesore |
AMD Ryzen 9000 Series Processors
AMD Ryzen 8000 Series Processors
AMD Ryzen 7000 Series Processors |
Tip memorije (RAM) |
DDR5 |
Broj memorijskih slotova |
4x 288-Pin DDR5 |
Podrška za memorije |
Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
Podrška za grafiku - portovi |
Integrated Graphics Processor with AMD Radeon Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60Hz
Support for HDMI 2.1 version and HDCP 2.3, and HDR.
Support for native HDMI 2.1 TMDS compatible ports. |
Slotovi za proširenja |
1 x PCI Express x16 slot, integrated in the CPU:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
M.2 portovi |
2x M.2 Socket 3 |
Čuvanje podataka - portovi |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
SATA portovi |
2x SATA 6Gb/s |
LAN |
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Bežična mreža |
Realtek Wi-Fi 7 RTL8922AE
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.) |
Bluetooth |
5.4 |
Zvuk (Audio) |
Realtek ALC4080 CODEC
High Definition Audio
2-channel |
USB portovi |
CPU:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |

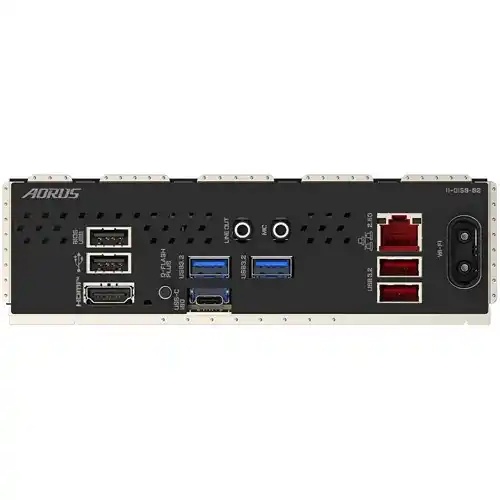

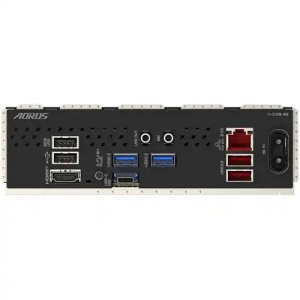

Konektori na zadnjoj strani |
1 x Q-Flash Plus button
1 x HDMI port
2 x antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x audio jacks |
Unutrašnji konektori |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x speaker header
1 x front panel audio header (routed from the adapter card on the rear panel)
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header |
Posebne mogućnosti |
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control |
Operativni sistem |
Windows 11 |
BIOS |
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Format |
Mini-ITX |
